UFREE ATV
MINI QUAD ATV AT-G14C
POCKET QUAD ATV AT-G14 (LAND EAGLE)
difference of AT-G1xB,C,D difference of AT-G1xB,C,D difference of AT-G1xB,C,D

AT-G14B

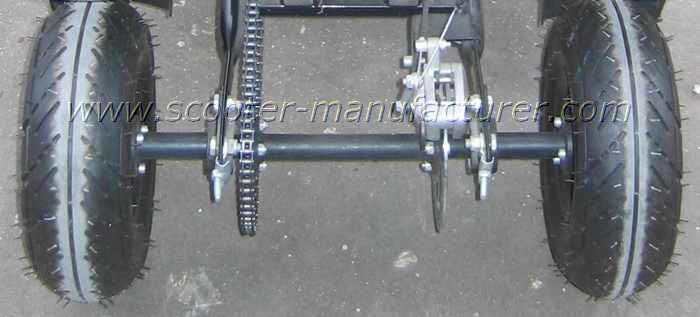

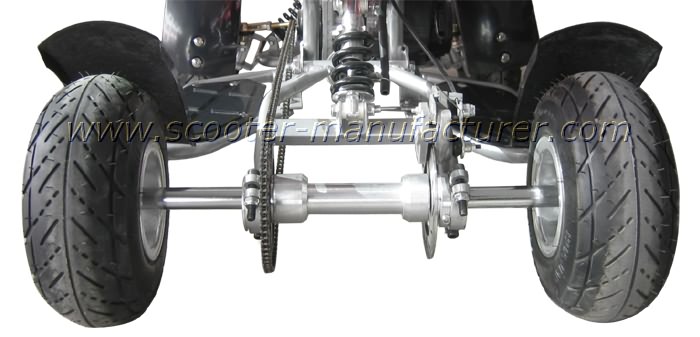

AT-G14C AT-G14D
[<< First] [< Previous] [Next >] [Last >>]

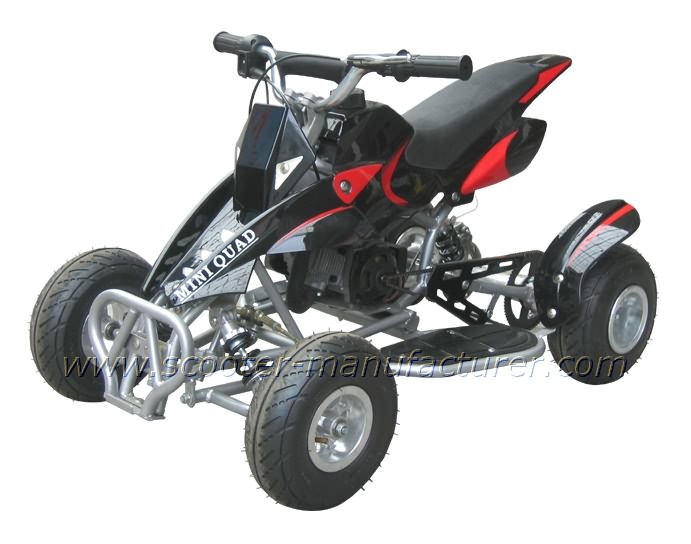

Name: Pocket Quad ATV
Item No.: AT-G14C (land eagle)
Product Size: 105x64x58cm (41x25x23inch)
Carton Size: 102x63x56cm
Container Load Capacity: 80pcs/20'ft; 160pcs/40'ft
Wheel and Diameter: front/rear (3.00-4")
Fuel: petrol: 1:25 engine oil mixing
Tank Capacity: 1.0 liter
Engine: single cylinder, 2 strokes, air-cooled
Displacement: optimized 49cc (faster than normal 47cc or 49cc engine)
Suspension : front two/rear one arm-swing
Max Torque: 2.2N.m/5000r/min
Ignition: pull start
Driven: chain
Transmission: auto cluch
Brake: rear disc brake
Speed:

50km/h(31mph)

Range: 28km (17.4 miles)
Net weight: 29kg(64lbs.)
Gross Weight: 33kg(73lbs.)
Maximum Load: 100kg (220lbs.)
Colour: various

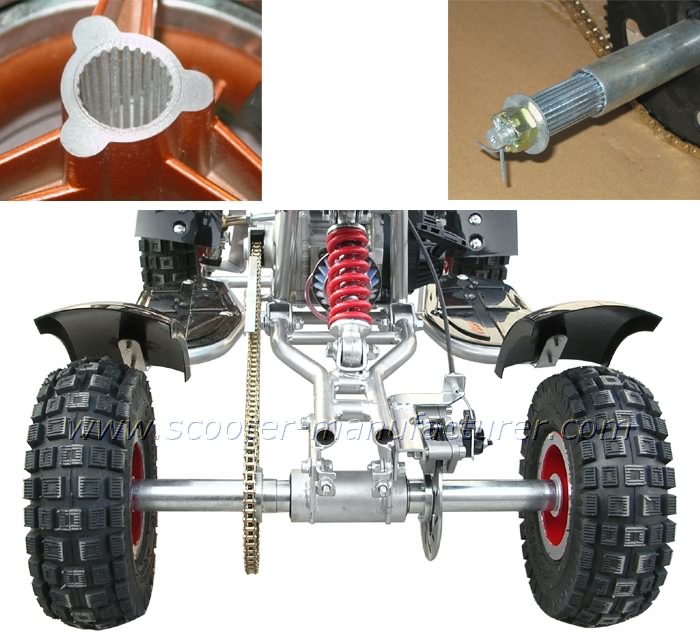

AT-G14B has:
1. Two front arm-swings (not only shock absorbers, they are real arm-swings).
2. Rear arm-swing with real ATV technique.
3. Stronger rear axle with spline.
4. Aluminium exhaust pipe.
5. Off-road tyres.
