MINI QUAD BIKE AT-G11
MINI QUAD BIKE AT-G11
difference of AT-G1xB,C,D difference of AT-G1xB,C,D difference of AT-G1xB,C,D

AT-G11B

AT-G11C AT-G11D
[<< First] [< Previous] [Next >] [Last >>]

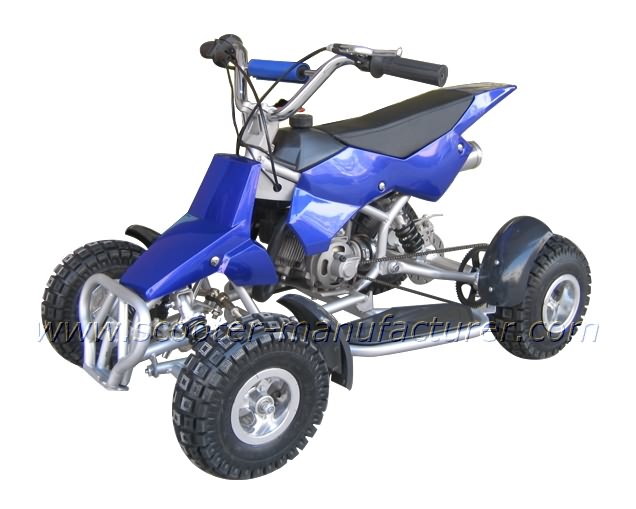

Name: MINI QUAD BIKE
Item No.: AT-G11C
Product Size: 100x60x62cm (39x24x24inch)
Carton Size: 102x63x56cm
Container Load Capacity: 80pcs/20'ft; 160pcs/40'ft
Wheel and Diameter: front/rear (3.00-4")
Fuel: petrol: 1:25 engine oil mixing
Tank Capacity: 1.0 liter
Engine: single cylinder, 2 strokes, air-cooled
Displacement: optimized 49cc (faster than normal 47cc or 49cc engine)
Suspension : front two/rear one shock absorber
Max Torque: 2.2N.m/5000r/min
Ignition: pull start
Driven: chain
Transmission: chain
Brake: rear disc brake
Speed:

50km/h(31mph)

Range: 28km (17.4 miles)
Net weight: 29kg(64lbs.)
Gross Weight: 33kg(73lbs.)
Maximum Load: 100kg (220lbs.)
Colour: various
