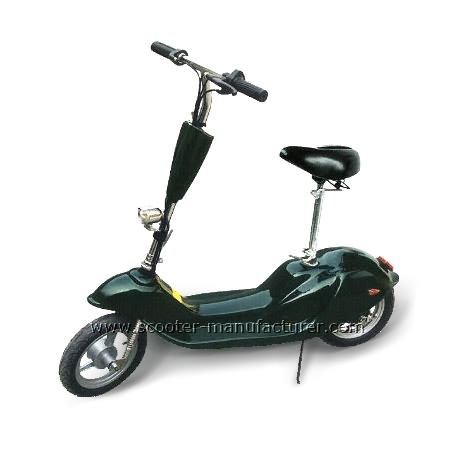

Electric Scooter FS-E11A
[<< First] [< Previous] [Next >] [Last >>]
Name: Electric Scooter
Item No.: FS-E11A
Product Size: 115(L)x45(W)x95(H)cm (45x18x37inch)
Carton Size: 118x35x50cm
Container Load Capacity: 160pcs/20'ft; 330pcs/40'ft; 392pcs/40'HQ
Wheel and Diameter: 12 inch alloy rim pneumatic rubber tyres
Material of Shell: steel, alloy, ABS
Engine: 250 watt DC electric motor
Battery Capacity: 12AH/12V x2PCS
Recharge Times: 250-300
Charge Times: 3-6 hours
Driven Transmission: chain
Brake:: handle operate rear drum brake
Speed: 18km/h (11mph)
Range: 20-25km (13-16miles)
Net Weight 25kg(55lbs.)
Gross weight: 28kg(62lbs.)
Maximum Load: 100kg (220lbs.)
Difference of FS-E11 Series front T structure
Colour: red, blue, white, silver, green, yellow, black.
headlight, turn signal light, brake light, adjustable cushion saddle, folding lever
Additional Option removable box/basket, mirror, buzzer, kid's seat, backrest, spoke rim tyre
Parts Direction Exploded View
