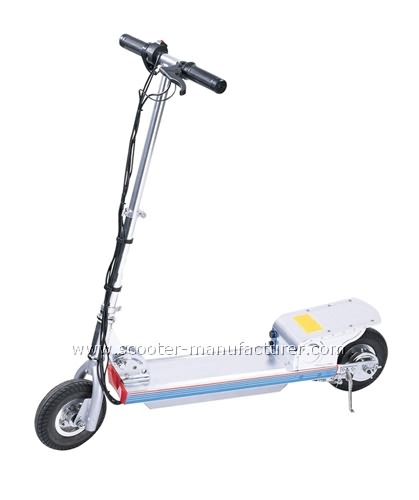

| Folding Electric Scooter FS-E24 |
|
|
| |
|
|
| |
|
| Name: |
Folding Electric Scooter |
| Item No.: |
FS-E24 |
| Product Size: |
102x37x94cm (40x15x37inch)
|
| Carton Size: |
100x23x32cm |
| Container Load Capacity: |
396pcs/20'ft; 790pcs/40'ft; 940pcs/40'HQ |
| Wheel and Diameter: |
8 inch alloy rim pneumatic tyres |
| Material of Shell: |
steel, alloy |
| Engine: |
280watt DC electric motor |
| Battery Capacity: |
12AH/12V x 2PCS |
| Recharge Times: |
250-300 |
| Charge Times: |
3-6 hours |
| Driven Transmission: |
belt |
| Brake:: |
handle operate rear drum brake |
| Speed: |
18km/h (11mph) |
| Range: |
21km (13miles) |
| Net Weight |
17kg(42lbs.) |
| Gross weight: |
19kg(37lbs.) |
| Maximum Load: |
120kg (265lbs.) |
| |
|
| Colour: |
red, blue, white, silver, green, yellow, black. |
| dash board , headlight, turn signal light, brake light, adjustable cushion saddle, folding lever |
| Additional Option |
mirror, buzzer |
| Parts Direction |
Exploded View |
| |
 |
|
