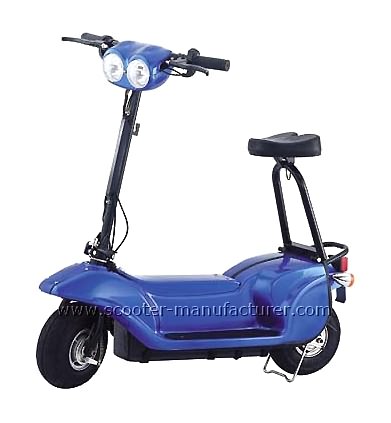

| Electric Scooter FS-E28 |
|
|
|
|
| |
|
| Name: |
Electric Scooter |
| Item No.: |
FS-E28 |
| Product Size: |
115x45x95cm (inch) |
| Carton Size: |
118x35x50cm |
| Container Load Capacity: |
160pcs/20'ft; 330pcs/40'ft; 392pcs/40'HQ |
| Wheel and Diameter: |
12 inch alloy rim pneumatic rubber tyre/tubeless |
| Material of Shell: |
steel, alloy, ABS |
| Engine: |
250watt DC electric motor |
| Battery Capacity: |
12AH, 24V |
| Recharge Times: |
250-300 |
| Charge Times: |
3-6 hours |
| Driven Transmission: |
chain |
| Brake:: |
handle operate rear drum brake |
| Speed: |
18km/h (mph) |
| Range: |
20-25km (miles) |
| Net Weight |
19kg(42lbs.) |
| Gross weight: |
21kg(46lbs.) |
| Maximum Load: |
120kg (265lbs.) |
| Difference of FS-E11 Series |
front T structure |
| Colour: |
red, blue, white, silver, green, yellow, black. |
| dash board , headlight, turn signal light, brake light, adjustable cushion saddle, folding lever |
| Additional Option |
removable box/basket, mirror, buzzer, kid's seat, backrest, spoke rim tyre |
| Parts Direction |
Exploded View |
| |
 |
|
