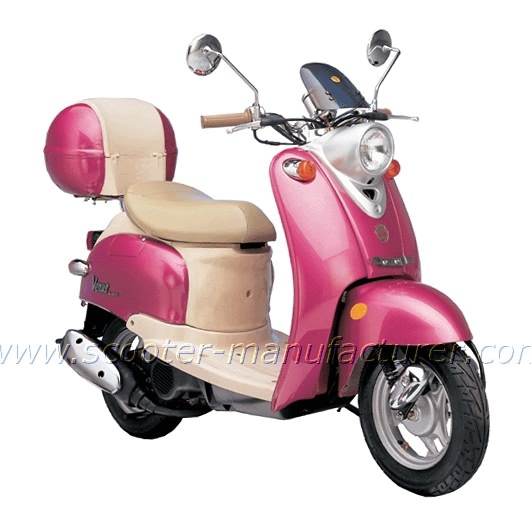

| Moped Motor Scooter 50QT-11-EEC |
|
|
|
|
| |
|
|
| Name: |
Moped Motor Scooter |
Other Option |
| Item No.: |
50QT-11-EEC |
|
| Product Size: |
1680x680x1070 |
|
| Wheelbase |
1210mm |
|
| Net weight: |
77KG |
|
| Max load capacity |
95KG |
|
| Wheel and Diameter: |
front/rear
3.5-10/3.5-10
|
|
| Carton Size: |
|
|
| Container Load Capacity: |
32pcs/20'ft;70pcs/40'ft;105pcs/40'HQ |
|
| Fuel tank capacity |
7.0liter |
|
| Bore x stroke |
39x41.4mm |
|
| Compression ratio |
10:5:1 |
|
| Standard Power |
2.0KW/7000(R/MIN) |
|
| Max torque |
2.7N.M/6500/(R/MIN) |
|
| Ldling speed |
1900+100RPM |
|
| Min consumption |
≤495G/KW.H
|
|
| Gasoline |
93 |
|
| Lubricant |
SAE 85W/90 |
|
| Clutch |
automatic |
|
| Primary rotary ratio |
7.8 |
|
| Final rotary ratio |
18.9 |
|
| Displacement: |
49cc |
|
| Ignition: |
electric start & kick start both |
only kick |
| Battery |
12V/5AH |
|
| Speed: |
45KM/H |
|
| Climbing capacity |
21° |
|
| Oil consumption |
≤2.0L/100KM |
|
| Drive by sound level |
70.5DB |
|
| Brake System |
front/disc, rear/drum |
front/disc, rear/disk |
| Braking distance |
≤4M |
|
| Material of rim: |
aluminium |
|
| |
 |
|
