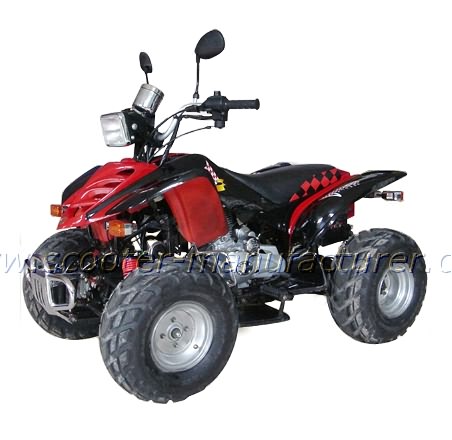

| ATV200S-3-EEC with EEC Approved |
|
|
|
|
| |
|
| Name: |
ATV (All-terrain vehicle) EEC |
| Item No.: |
ATV200S-3-EEC |
| Product Size: |
159×98×101cm |
| Carton Size: |
149×84×77cm |
| Container Load Capacity: |
29pcs/20'ft; 64pcs/40'ft; 66pcs/40'HQ |
| Wheel base |
1110mm |
| Compression Ratio: |
9.2:1 |
| Engine: |
4-stroke, single-cylinder,air-cooled |
| Displacement: |
196.98cc |
| Tank Capacity: |
4 liter |
| Max Power: |
10.0KW/7500r/min |
| Max Torque: |
13.5N.m/6500r/min |
| Ignition: |
C.D.I. |
| Driven: |
shaft driven, double arm-swing |
| Shift gear: |
four gear with reverse gear, manual cluch |
| Brake: |
drum |
| Speed: |
65km/h |
| Start mode: |
electric |
| Net weight: |
145kg |
| Gross Weight: |
180kg |
| Maximum Load: |
150kg |
| Tire specification: |
fron/rear wheel:19×7-8/ 18×9.50-8 |
| Lights are separated from instrument board |
| |
|
| |
 |
|
