| Name: |

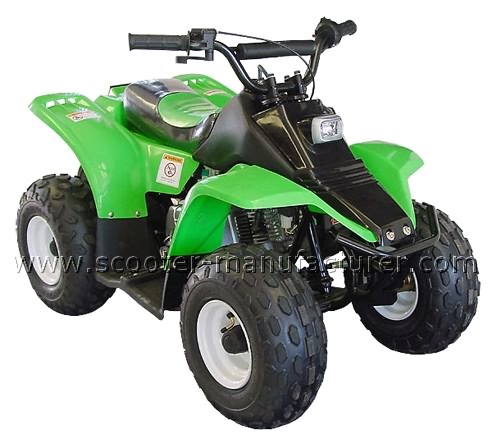

Mini ATV (All-terrain vehicle) |
| Item No.: |
AT-G06 |
| Product Size: |
112×56×73cm (44×29×22inch) |
| Carton Size: |
115×76×70cm (45×30×28inch) |
| Container Load Capacity: |
48pcs/20'ft; 102pcs/40'ft; 136pcs/40'HQ |
| Wheel and Diameter: |
14" alloy rim pneumatic rubber tyre/tubeless |
| Compression Ratio: |
7.0:1 |
| Engine: |
4-stroke, single cylinder, air cooling |
| Displacement: |
50cc, 70cc |
| Tank Capacity: |
3.4 liter |
| Max Power: |
2.6kw/8500rpm |
| Max Torque: |
3.0N.m/7500rpm |
| Ignition: |
C.D.I. (electronic) / kick-back both |
| Driven: |
chain |
| Transmission: |
fully automatic clutch or 4-speed semi-auto adjustable |
| Brake: |
drum |
| Speed: |
30km/h (19mph) |
| Range: |
85km (53mile) |
| Net weight: |
71kg(156lbs.) |
| Gross Weight: |
95kg(209lbs.) |
| Maximum Load: |
90kg (200lbs.) |
| Colour: |
various |
| |
