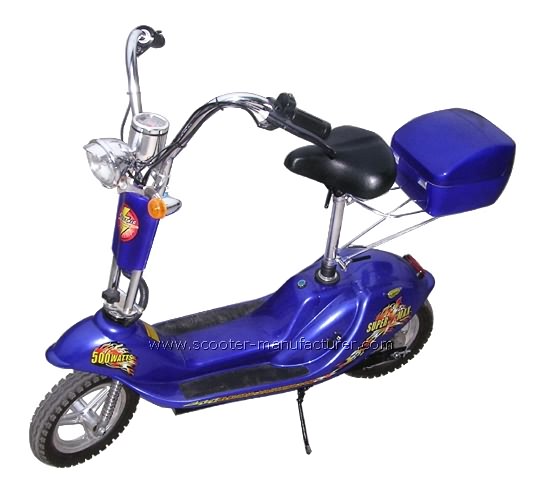

| 500W Fast Electric Scooter FS-E11F |
|
|
|
|
| |
|
| Name: |
Powerful 500W Electric Scooter |
| Item No.: |
FS-E11F |
| Product Size: |
115(L)x45(W)x95(H)cm (45x18x37inch) |
| Carton Size: |
118x35x50cm |
| Container Load Capacity: |
160pcs/20'ft; 330pcs/40'ft; 392pcs/40'HQ |
| Wheel and Diameter: |
12 inch alloy rim pneumatic rubber tyres |
| Material of Shell: |
steel, alloy, ABS |
| Engine: |
500 watt DC electric motor |
| Battery Capacity: |
12AH/12V x3PCS |
| Recharge Times: |
250-300 |
| Charge Times: |
3-6 hours |
| Driven Transmission: |
chain |
| Brake:: |
handle operate rear drum brake |
| Speed: |
45km/h (28mph) |
| Range: |
28-33km (17-21miles) |
| Net Weight |
27kg(59lbs.) |
| Gross weight: |
29kg(64lbs.) |
| Maximum Load: |
130kg (286lbs.) |
| Difference of FS-E11 Series |
more powerful, load capacity, faster and longer range, climb slope |
| Colour: |
red, blue, white, silver, green, yellow, black. |
| climb 35 degree, dash board, headlight, turn signal light, brake light, adjustable cushion saddle, folding lever |
| Additional Option |
removable box/basket, mirror, buzzer, kid's seat, backrest, spoke rim tyre |
| Parts Direction |
Exploded View |
| |
 |
|
