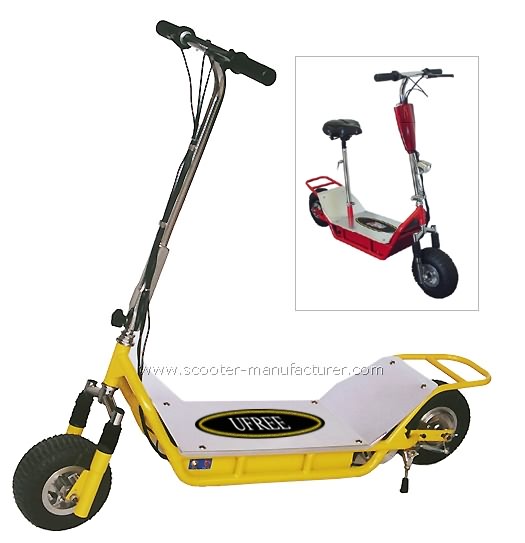

| Electric Scooter FS-E25 |
|
|
|
|
| |
|
| Name: |
Electric Scooter |
| Item No.: |
FS-E25 |
| Product Size: |
121x46x107cm (48x18x42inch) |
| Carton Size: |
100x55x94cm |
| Container Load Capacity: |
138pcs/20'ft; 285pcs/40'ft; 325pcs/40'HQ |
| Wheel and Diameter: |
9 inch alloy rim pneumatic tyres |
| Material of Shell: |
steel, alloy |
| Engine: |
350watt DC electric motor |
| Battery Capacity: |
17AH/12V x2PCS |
| Recharge Times: |
250-300 |
| Charge Times: |
4-6 hours |
| Driven Transmission: |
chain |
| Brake:: |
handle operate rear drum brake |
| Speed: |
22km/h (14mph) |
| Range: |
28km (17miles) |
| Net Weight |
28kg(17lbs.) |
| Gross weight: |
30kg(19lbs.) |
| Maximum Load: |
120kg (265lbs.) |
| |
|
| Colour: |
red, blue, white, silver, green, yellow, black. |
| dash board , headlight, turn signal light, brake light, adjustable cushion saddle, folding lever |
| Additional Option |
removable seat, mirror, buzzer |
| Parts Direction |
Exploded View |
| |
 |
|
