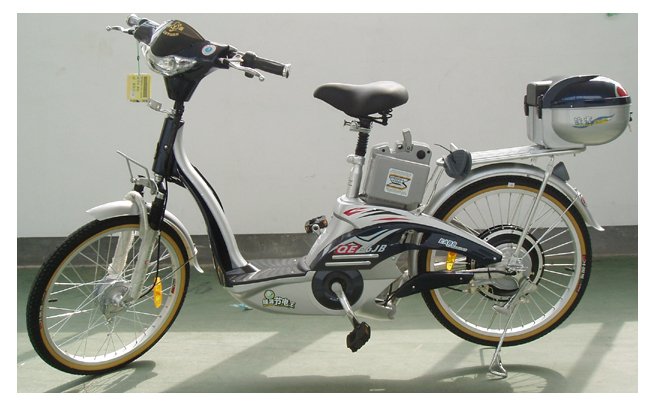

| Electric Bicycle PB501 |
|
|
|
|
|
|
|
| Name: |
Electric Bicycle |
Other Option |
| Item No.: |
PB501 |
|
| Product Size: |
172×59×96cm |
|
| Wheelbase |
mm |
|
| Net weight: |
46kg |
|
| Rated load |
125kg |
|
| Wheel and Diameter: |
front/rear
22” *1.75 |
|
| Carton Size: |
169x30x95cm |
|
| Container Load Capacity: |
52PCS/20”GP, 112PCS/40”GP, 126PCS/40”HQ |
|
| power rating |
250W |
|
| Max Speed: |
22, 32km/h, 2-speeds switch |
|
| Range: |
≥40km, pedal assisted>80km |
|
| rated rev |
r/min |
|
| Torque: |
24N.m |
|
| Type of motor: |
brushless hub motor, intelligent pedal assist |
brush motor |
| Battery type: |
Sealed Lead-acid battery (Maintainable) |
|
| Battery capacity: |
48V/14Ah |
|
| Climbing capacity |
12°-15° |
|
| Brake System |
front/ drum , rear/EABS(electric absorption braking system) |
|
| Material of rim: |
aluminium alloy |
|
| BM-online (battery maintained while charging), head light, dashboard |
|
 |
|
