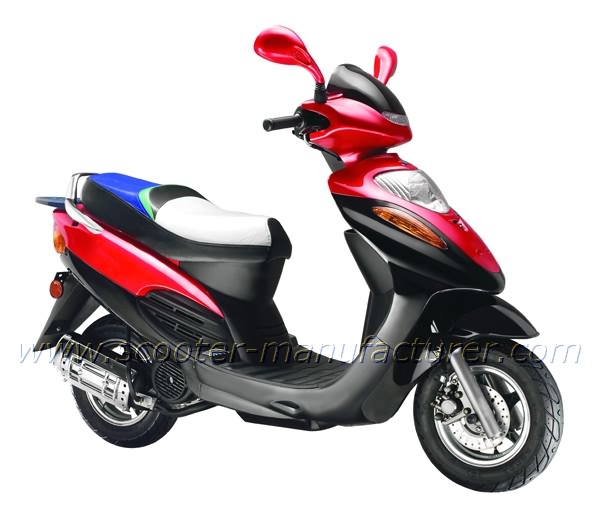

| Moped Motor Scooter 125T-8-EEC |
|
|
| |
|
|
| |
|
|
| Name: |
Moped Motor Scooter |
Other Option |
| Item No.: |
125T-8-EEC |
|
| Product Size: |
1800x680x1175 |
|
| Wheelbase |
1250mm |
|
| Net weight: |
102KG |
|
| Max load capacity |
150KG |
|
| Wheel and Diameter: |
front/rear
3.5-10,3.5-10
|
|
| Carton Size: |
|
|
| Container Load Capacity: |
24pcs/20'ft; 50pcs/40'ft; 75pcs/40'HQ |
|
| Fuel tank capacity |
4.5liter |
|
| Bore x stroke |
52.4x57.8mm |
|
| Compression ratio |
9:2:1 |
|
| Standard Power |
4.7KW/7000(R/MIN) |
|
| Max torque |
6.8N.M/5500/(R/MIN) |
|
| Ldling speed |
1700+100RPM |
|
| Min consumption |
|
|
| Gasoline |
93 |
|
| Lubricant |
SAE 15W/40SF |
|
| Clutch |
automatic |
|
| Primary rotary ratio |
7.7 |
|
| Final rotary ratio |
22.7 |
|
| Displacement: |
125cc |
|
| Ignition: |
electric start & kick start both |
only kick |
| Battery |
12V/5AH |
|
| Speed: |
82KM/H |
|
| Climbing capacity |
21° |
|
| Oil consumption |
≤2.2L/100KM |
|
| Drive by sound level |
67.5DB |
|
| Brake System |
front/disc, rear/drum |
front/disc, rear/disk |
| Braking distance |
≤7M |
|
| Material of rim: |
aluminium |
|
| |
 |
|
