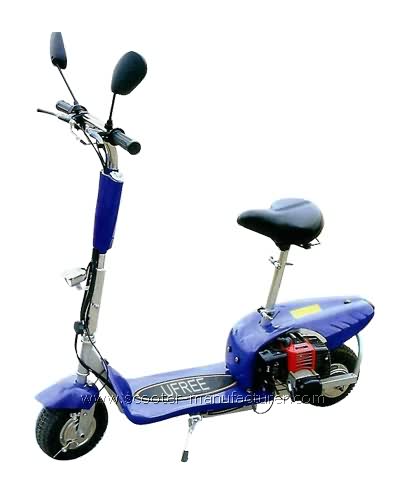

| Gas Scooter FS_G01 |
|
|
|
|
| Name: |
Gas Scooter |
| Item No.: |
FS-G01A |
| User Age: |
>12 |
| Product Size: |
112x36(46 handle)x95cm |
| Carton Size: |
105x37.5x46.5cm
|
| Container: |
160pcs/20'ft; 330pcs/40'ft; 387pcs/40'HQ |
| Wheel: |
9X3 inch alloy rim pneumatic rubber tyre |
| Main Material: |
Steel and alloy |
| Deck: |
ABS |
| Motor Power: |
33cc/43cc, single cylinder, air-cooled, 2-stroke |
| Driven Transmission: |
chain |
| Oil Type: |
1:25 engine oil mixing |
| Tank Capacity: |
1.5L |
| Ignition: |
electronic and manual pull |
| Max Speed: |
30/40km/h |
| Max Range: |
35km |
| Brake: |
handle operate rear drum brake |
| N.W./G. W.: |
30/32kg |
| Maximum Load: |
100kg |
| Colour: |
red, blue, white, silver, green, yellow, black, and etc. |
Difference Between
FS-G01A, B, C, D |
front T structure |
| Parts Can Be Added: |
removable box/basket, mirror, buzzer, kid's seat, backrest |
| Power indicator, headlight, speed throttle, protective cover of oil tank, brake light, adjustable cushion seat. |
| Parts Direction |
Exploded View |
| |
 |
|
